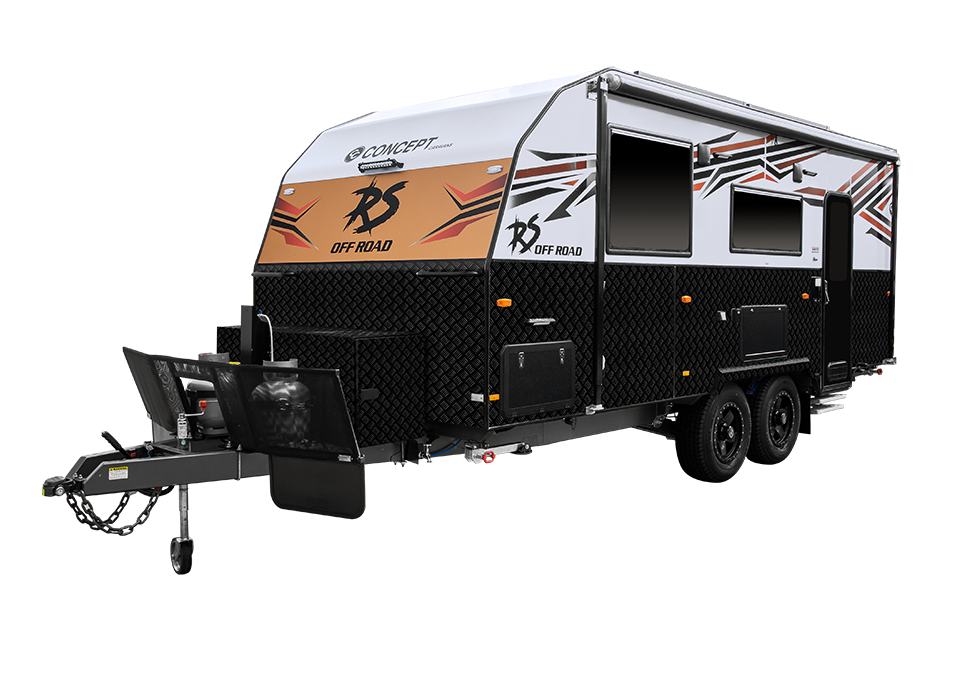

RS Off road

Tried, tested and proven. Concept Caravans release their first full Off-Road range, the RS Off Road. Post extensive research, which included market and customer feedback, we now deliver the RS series with five layouts to choose from.

The RS Series Caravans are comprised of a purpose designed 150 x 150 RHS dark grey chassis with numerous floor supports, fitted with control rider TS suspension, dual shock-absorbers, 17” wheels, D035 coupling, ALKO ESC 160 and coupled to a one-piece floor resulting in a rigid foundation for our new off-road offering.

From a compact 16′ single axle van to a 20’6” variant, as expected in all Concept vans, it comes fully fitted with no compromises, allowing for your experience to be enjoyed as planned.

Layout Configuration

RS Single Axle 4.88m

Length: 16ft

RS Twin Axle 5.70m

Length: 18ft7

Length (Overall): 8090

Length (Body): 5760

Height: 3120

Width (incl. Awning): 2450

Internal Height: 2150

ATM: 3410

GTM: 3250

Tare: 2830

Tow Ball: 160

RS Twin Axle 5.97m

Length: 19ft6

Length (Overall): 8350

Length (Body): 6020

Height: 3120

Width (incl. Awning): 2450

Internal Height: 2150

ATM: 3380

GTM: 3220

Tare: 2820

Tow Ball: 160

RS Twin Axle 6.28m

Length: 20ft6

Length (Overall): 8640

Length (Body): 6310

Height: 2150

Width (incl. Awning): 2450

Internal Height: 2150

ATM: 3460

GTM: 3250

Tare: 2960

Tow Ball: 210


  • Aerodynamic body shape
  • 3mm White composite exterior cladding
  • Extended Checkerplate to front, sides and rear
  • Crimsafe Main Door
  • Dometic double glazed windows with integrated blinds and fly screens
  • Tail Lamps to rear wall
  • LED Flood lighting to front and rear


  • Modern flush finish solid cabinetry
  • Soft closing drawers
  • The latest in gloss & matt finish cupboard doors
  • Vegas leather look upholstery with extenda seats
  • Storage alcoves to side of bed

BMPRO charger with odyssey touch panel for battery & tank level monitoring

2x 170 Watt solar panel fitted with digital regulator

2x Lithium Batteries

DC to DC Charger

Bluetooth Large Screen DVD/Radio

24″ TV

TV Point

IBIS 4 Airconditioning

Wineguard HV TV antenna

Dometic 188L Compressor fridge

Washing machine

Swift hot water system

Microwave oven with insert surround

External mounted – integrated power inlet with circuit breaker

LED Striplights to kitchen & overhead cabinets

Waeco reverse camera (car kit supplied loose)

12V/USB fittings to robe cubby holes and Dinette

Polished Mirror

Dual 9kg gas bottles

1/2/3 roof hatches layout dependent

Extractor fan hatches fitted over toilet and shower

Raised fridge

Hydraulic table legs to club & L-shaped lounge models

Fold down picnic table

Cutlery tray fitted to kitchen drawer

Common outlet for all waste water

Water tap fitted to A Framewith stone guard

External TV point & 12V socket with Fusion Speakers

External shower tap set

China bowl toilet

Exterior annex lights *2 or 3x doorside layout dependent & 2x roadside)

Dark Grey, chassis with extended A-Frame

DO35 coupling

ALKO Electronic Stability system (ESC)

265 R17 Wheels & Tyres

All terrain tyres with stylsh alloy wheels

3.5T ATM Control Rider Suspension

Toolbox fitted to A-Frame with slide out

Trail A Mate Hydraulic Jack

Bumper bar with spare wheel mounted

Front Stone Guard with mud guards

Jerry Can holders

6’8″ Internal Height

Full galvanised Tunnel boot

Concept ‘Power Management Cabinet’

Fibreglass batt insulation to roof

Styrofoam insulation to walls

Spacious fully enclosed fibreglass shower to ceiling height

2x Towel rail, ring and toilet roll holder fitted to ensuite

Recessed Oven with electric hotplate

French made high wear floating vinyl flooring

Internal and external handles at entry

Water filter and tap

Grey water tank

Bike rack fitted

3rd Solar panel

Pull out Drawer to tunnel boot

Auto positioning to satellite system

Dust reduction unit

External Pull out kitchen

12V Hella or Sirrocco Oscillating Fans

RV Wifi
